8x edge-emitting DFB laser diode array designed for CW use in CW-WDM-MSA compliant applications.

The laser design is a ridge waveguide (RWG) grown on n-type substrate with multi-quantum well (MQW) active layers and distributed-feedback (DFB) ebeam lithography grating layer.

The facets are coated with a hermetic anti-reflectance layer on the front facet and a high reflectance coating on the rear facet.

This product is available to be purchased as a singulated die in Gel Pak or tape.

Key features

  • 50mW per channel CW operation
  • 400 GHz channel spacing around 1300nm
  • Operating temp 20°C to 70°C
  • AlInGaAs MQW active region
  • Suitable for non-hermetic applications







Applications

  • Datacentre
  • AI
  • High performance computing
  • CW WDM



Fig 1. Optical Spectrum at 45°C

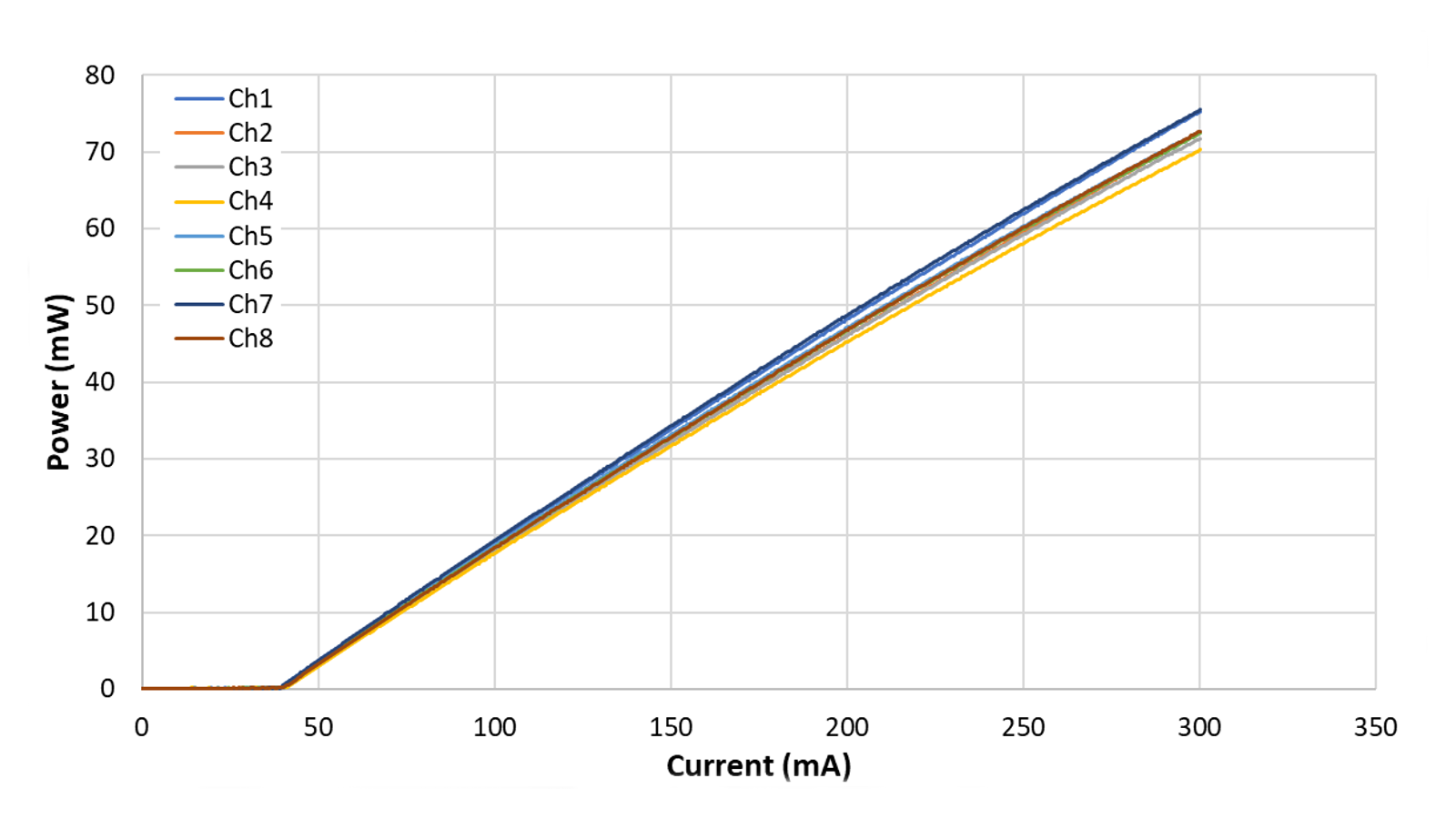

Fig 2. LIV Curves at 45°C
