High Power DFB Lasers for FMCW LIDAR

Frequency modulated continuous wave (FMCW) lasers  enabling the next generation of LIDAR technology







High Power DFB Lasers for FMCW LIDAR

Frequency-modulated continuous wave (FMCW) lasers at 1310nm/1550nm. Enabling improved LIDAR system performance, safety and range, at low cost, and low power consumption.

The laser design is a ridge waveguide (RWG) grown on n-type substrate with multi-quantum well (MQW) active layers and distributed-feedback (DFB) ebeam lithography grating layer.

The devices are compatible with non-hermetic assembly, with facets coated with an anti-reflection (AR) coating at the front and high-reflection (HR) coating at the back.

This product is available as a singulated die in Gel-Pak or on tape.

Contact us to discuss your specific requirements.

Key features

    • 100mW at 1310nm at 25°C / 60 mW at 1550nm at 25°C
    • LWs <300kHz
    • SMSR > 50dB
    • Complementary O-band and C-band booster SOAs



Applications

  • FMCW LIDAR





Optical Spectrum

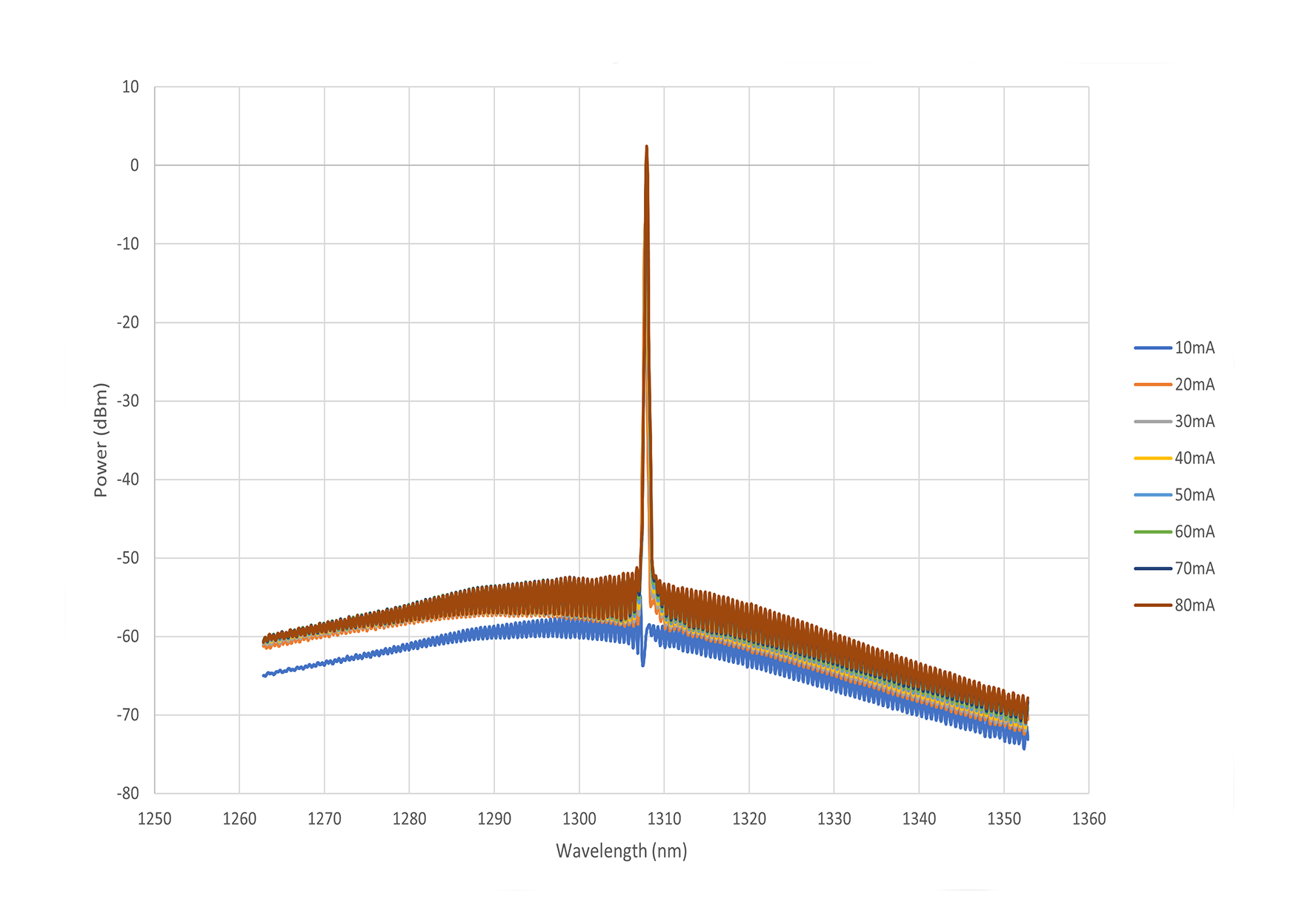

Fig. 1. Optical Spectrum at 1310nm



LIV Curve

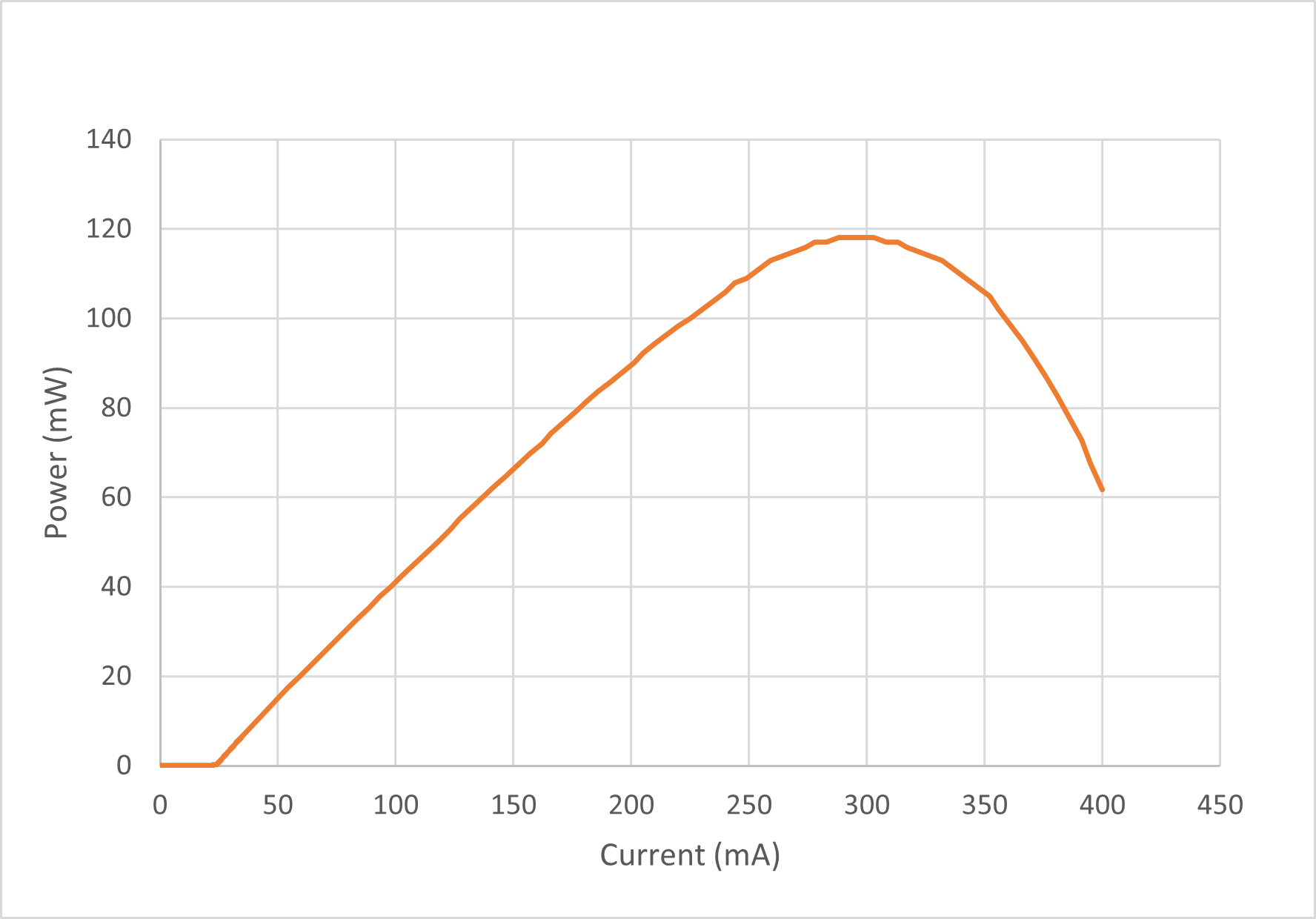

Fig. 2. LIV Curve at 1310nm



Optical Spectrum at 1550nm

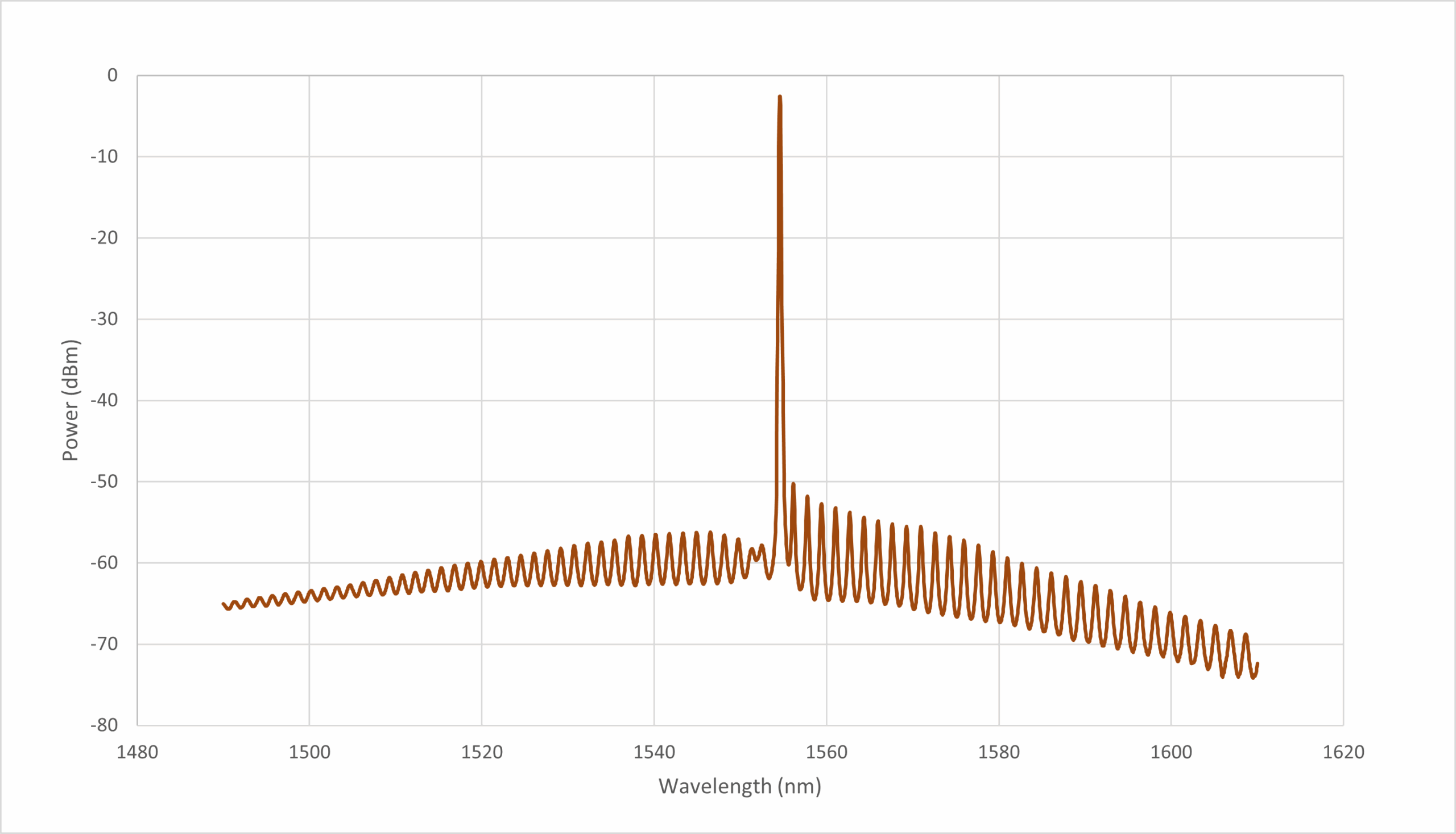

Fig 3. Optical Spectrum at 1550nm



LIV Curve at 1550nm

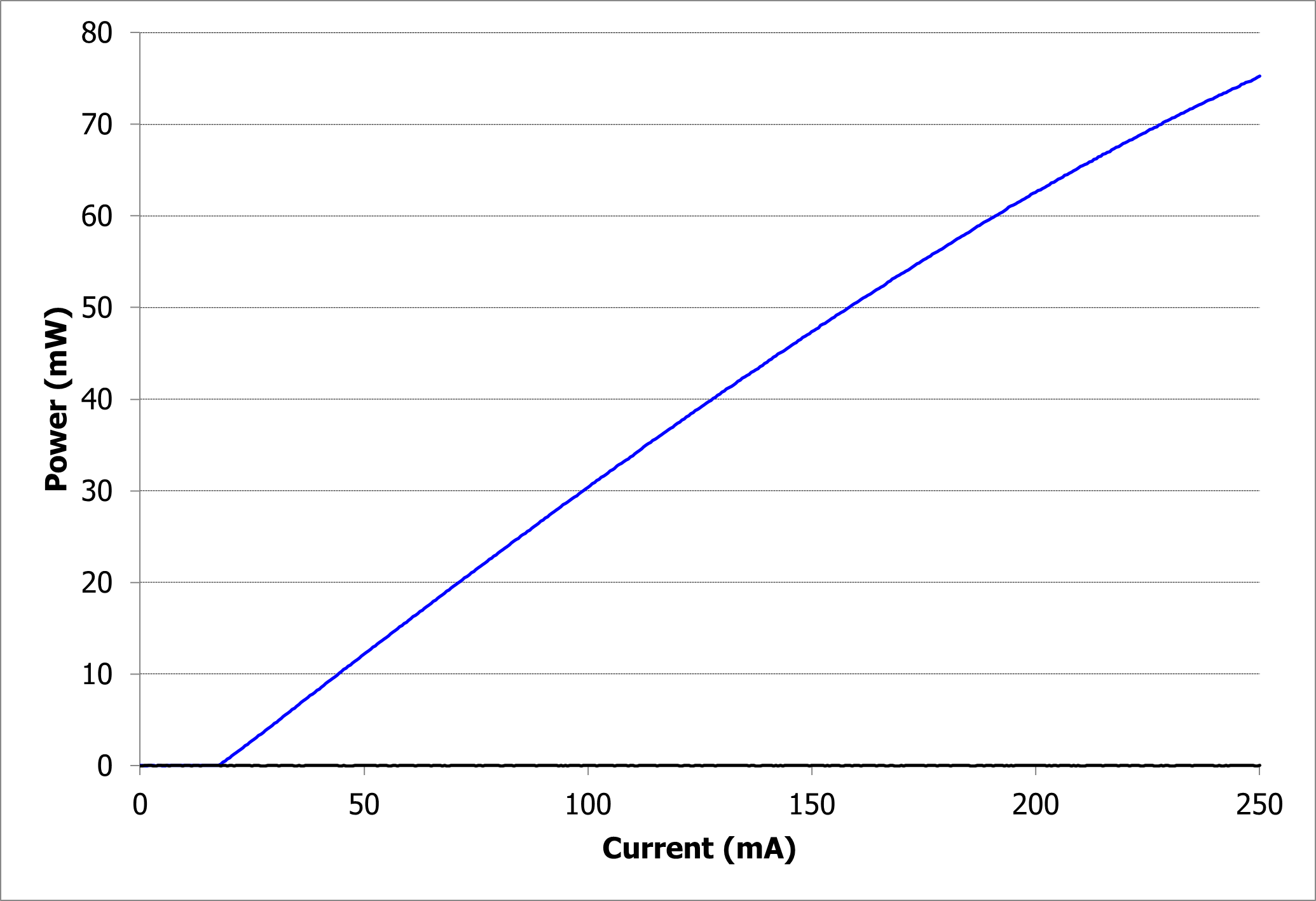

Fig. 4. LIV Curve at 1550nm



Sivers Photonics are part of SPIDAR, a government funded quantum collaboration project developing range finding and 3D imaging systems for driver assisted and autonomous vehicles. The project, collaboration with high-profile commercial partners Toshiba, Network Rail and Thales UK, amongst others. Read more.
